Sodium-ion Battery
Features
| High Security: | No fire or explosion during overcharge, over-discharge, short circuit, acupuncture, extrusion and other tests. |
| Low Cost: | Sodium is abundant in resources,ranking sixth in abundance in the earth's crust, and is evenly distributed and cheap. |
| Lithium-Battery Compatible: | Sodium-ion batteries have similar working principles and battery structures to lithium-ion batteries. |
| Heat and Cold Resistance: | Both high and low temperature tests show good capactity retention. |
| Certificate: | UN38.3, MSDS compliant |
Model List
| Model | Type | Nominal Capacity (Ah) | Voltage | Dimensions (mm) | Energy Density (Wh/kg) | Cycle life | Continuous Charging/ Discharging Rate | Connection |
| Na+10 | Cylindrical | 10 | 3.05 | Φ33.2*140 | 113 | 3000 (70% SOH) | 3C/3C | LW (Laser Welding) |

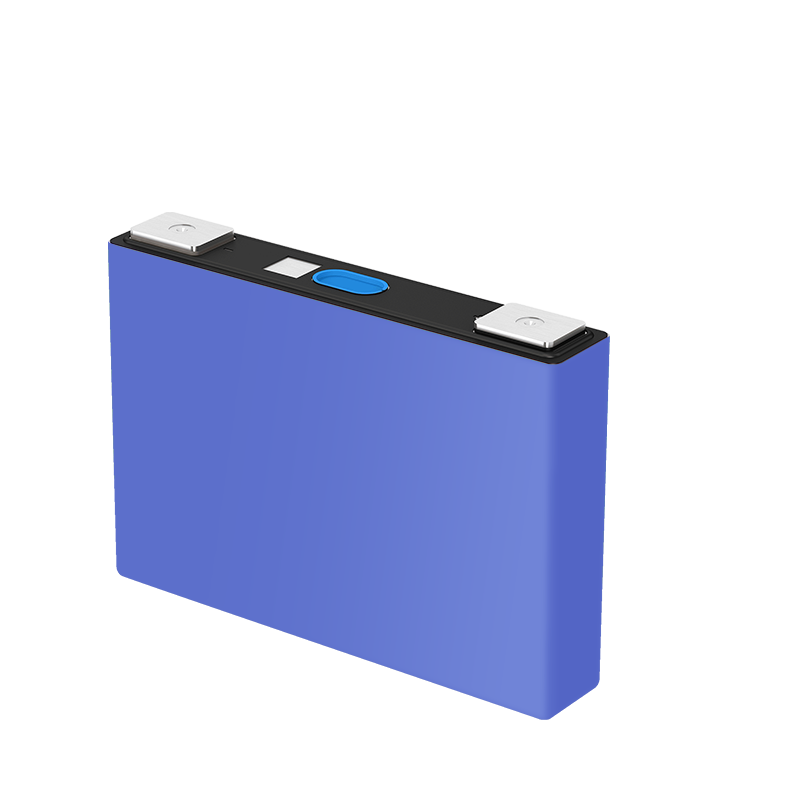

| Na+185 | Prismatic | 185 | 3 | 173.7*72*207 | 113 | 5000 (70% SOH) | 1P/1P | LW/M6 Screw/Stud |
Electric Bicycle, Electric Motorcycle, Electric Tricycle, Low Speed Electric Vehicle, Household Energy Storage, Industrial Energy Storage
Applications
| Model | Type | Nominal Capacity (Ah) | Voltage | Dimensions (mm) | Energy Density (Wh/kg) | Cycle life | Continuous Charging/ Discharging Rate | Connection |
| Na+10 | Cylindrical | 10 | 3.05 | Φ33.2*140 | 113 | 3000 (70% SOH) | 3C/3C | LW (Laser Welding) |
| Na+185 | Prismatic | 185 | 3 | 173.7*72*207 | 113 | 5000 (70% SOH) | 1P/1P | LW/M6 Screw/Stud |
Electric Bicycle, Electric Motorcycle, Electric Tricycle, Low Speed Electric Vehicle, Household Energy Storage, Industrial Energy Storage
